Animatronic Repair and Hacks: Triggers, Always-On, Sensors, and When a Prop Goes Dead

We read nine Home Depot Halloween prop manuals (the PDFs Home Depot hosts for its product pages), the parts policy of the company that builds the Skelly, and Spirit Halloween’s own tech-support and accessory pages, all on September 26, 2026. Everything below comes from those documents unless we say otherwise, and the manual for your exact model beats anything here.

“Home Accents Holiday,” Home Depot’s Halloween label, is not one maker. The Skelly, Deadwood, Hovering Witch and Immortal Werewolf manuals carry the name of Seasonal Visions International (SVI). The hearse, pirate ship and Ferry of the Dead manuals name Pan Asian Creations. Each has its own customer-service line, listed below.

Trigger Modes, Prop by Prop

Prop (model)	Modes, in the manual’s words	Sensor	Trigger input
12ft Giant Sized Skelly (24SV24386)	LIGHTS ONLY; TIMER • SENSOR; OFF • STEP PAD	IR, up to 13 ft, 80 degrees	Step pad port on the pelvis control panel
12 ft App Controlled Skelly (26SV25555)	BLUETOOTH; LIGHTS ONLY; OFF • STEP PAD; TIMER • SENSOR	IR, up to 13 ft, 80 degrees	Step pad or try-me button, “Not Included”
12.5 ft Giant Deadwood Skeleton (24SV24540)	ON; TIMER; OFF	None	None
Hovering Witch and Immortal Werewolf (2022)	ON; SENSOR; TIMER; OFF • TRY ME	IR, up to 6.5 ft, 80 degrees	“Try Me receiver” with a waterproof cap
5 ft Animated LED Hearse (25PA04179)	Driver: ON is sound activated, OFF is try-me	Sound, over 90 decibels	Try-me jack on the front end panel
8 ft Ferry of the Dead	Reaper: ON is sound activated, DEMO is try-me	Sound	Try-me button on the reaper’s left hand
9.5 ft Dead Water Pirate Ship (25PA04180)	Pirate: ON lights its eyes on a 6-hours-on, 18-off timer. Wheel runs whenever it’s plugged in	None	None

The classic Skelly’s sensor doesn’t animate the Skelly. In TIMER • SENSOR mode, “the LCD eyes will remain on and are not influenced by the Infra-red (IR) sensor.” When the sensor does fire, “accessories to be sold separately that are attached to the red cable” run for “an 18-second activity cycle.” The manual names that accessory as the 12 Foot Skeleton Lighting Kit and adds that the red cable “does not have a use otherwise.” What runs the Skelly’s own 18-second cycle is the step pad: in OFF • STEP PAD, “each press activates the 12ft Giant Sized Skelly for an 18 second cycle.”

The 2026 App Skelly behaves differently. Its TIMER • SENSOR mode runs “one activity cycle (animation and sound)” on each sensor trip, and OFF • STEP PAD fires one cycle per press of “a Step Pad or Try Me Button (Not Included).” Out of the box it is in demo mode. The manual says to “hold the ‘MODE’ button for 7 seconds to take the item out of demo mode.”

Sensor range varies within the same maker. The Skellys see up to 13 feet; the 2022 Witch and Werewolf see 6.5. All four use an 80-degree cone, reaching left to right and above and below. None of the manuals offers a sensitivity setting. If the prop fires at every passing car, the manuals’ only lever is the mode switch: put it on step pad or try-me and it stays off until someone presses.

Sound-activated props want a loud, close noise. The hearse manual asks for “a trigger sound of more than 90 decibel” within “39.5 in (100cm).” The hearse’s table measures that distance to “the pony,” meaning the Skeleton Pony the manual lists as “NOT INCLUDED.” The Ferry’s table uses the same 39.5 inches, measured to “the reaper” in one line and to “the horse” in the next.

Spirit’s tech-support FAQ adds a rule that fits both makers: “if the animatronic is set to step pad, this setting will override the motion sensor.”

Almost No Always-On Mode

None of the nine manuals offers a setting that animates a prop continuously. The “on” and “lights only” settings run lights and eyes; the Witch manual says plainly that its ON “mode does not have any animation.” Movement comes one cycle per trigger. The one exception we found is the Dead Water Pirate Ship’s wheel, which the manual says runs when you “Plug the UL Listed AC 12V, 830MA Adapter into a standard 120V household outlet.”

The manuals do give you a scheduling tool. The Skelly, App Skelly and Deadwood manuals all say the prop “is compatible with external timers and preserves its setting when the power is turned OFF/ON.” Leave the prop in the mode you want, plug it into an outlet timer, and it wakes up in that mode every evening.

That beats the built-in timer for one reason. The 6-hours-on, 18-hours-off cycle starts when you select it: the classic Skelly manual says the mode “will activate SENSOR mode for 6 hours followed by a deactivated period of 18 hours.” Select it at noon and the prop goes dark at six.

The same line means unplugging does not reset the mode. If a prop “won’t turn on” after a power cut, it’s probably still sitting in OFF • STEP PAD.

Step Pads, Try-Me Buttons and Jacks

None of the nine manuals gives the plug size for a step-pad or try-me input. The only jack size printed anywhere is the App Skelly’s speaker port: “Plug any external speaker into this receiver using a 3.5 mm audio jack.” Its troubleshooting table then lists, as its own row, “Please make sure your try-me button is not plugged into the speaker jack.” The manual treats a try-me button in the speaker jack as a known mistake that stops the prop from firing, and its fix for missing sound is to unplug whatever is in that jack.

Spirit’s FAQ gives the same warning in general form: “Some animatronics have more than one jack for external triggers,” and it tells you to “make sure that your animatronic is step pad/try me button compatible.”

The first-party triggers we could check on September 26:

• Spirit Step Pad Animatronic Activator, $10.99, 8 by 6 inches on a 10-foot cord. Spirit says it is “compatible with all of our animatronics” (Spirit’s listing), meaning Spirit’s own props.
• Spirit Try Me Button Animatronic Activator, $9.99, online only and out of stock that day, with a 20-foot cord. The listing says to “plug its activation wire into the animatronic step pad jack” (Spirit’s listing).
• SVI’s 12 ft. Cord Try Me Button, $14.99 in orange or black, sold out on SVI’s parts site. The listing names no compatible props.

SVI’s parts policy lists “step pads” among accessories it will not replace. Aftermarket pads on Amazon state their plug type in the seller’s words only; our 2026 store animatronics guide covers two of them and what to check before you order.

The Skelly, App Skelly and Deadwood manuals draw one line on accessories: “Do not add to or modify unless accessory is designed for product.” The 2022 Witch and Werewolf manuals are stricter: “Don’t add to or modify product.” They also add a weather rule for their jacks: “Make sure the waterproof cap is covering the Try Me receiver at all times when not in use.” For where to hide a pad so the scare lands, see our mechanical triggers masterclass.

Power: Adapters, Cords and Batteries

Prop	Adapter output, per the manual
Classic 12ft Skelly	5.9V, 3A, 17.7W
App Skelly	5.9V, 3.0A, 17.7W
Deadwood Skeleton	5.9V, 1.5A
Hovering Witch, Immortal Werewolf	5.9V, 2.0A
Ferry of the Dead	“UL Listed, 6 V, 1.5A adapter”
Pirate Ship wheel	“UL Listed AC 12V, 830MA Adapter”

Four of these share a voltage and differ in current, from 1.5 to 3 amps. Even one model changes between years. SVI’s parts page for the classic Skelly (model 24SV24386, sold there as the “12 ft. Giant-Sized Skelly 2.0”) lists both an “ADAPTER 3A OUTDOOR” and a 2025 “ADAPTER 1.5A OUTDOOR,” while the manual we read gives 3A. Spirit’s FAQ suggests testing a dead prop with “another adapter of the same voltage,” but the SVI numbers show voltage alone doesn’t identify the right one. Match the label on your own prop’s adapter, volts and amps, and get the replacement from the maker. Every SVI manual says “Please use the adapter supplied by manufacturer,” the Skelly’s pictograms say “USE INCLUDED ADAPTER ONLY,” and all of them add “Keep flammables away from the adapter, as it heats up during operation.”

Extension cords and outdoor outlets

• Dead Water Pirate Ship: “Do not use an extension cord.” Outdoors, “install only to a covered Class A GFCI protected receptacle that is weatherproof,” and mount the unit “at a height greater than 1 foot from the ground surface.” It rules out covers that only keep water out while closed, so you need a weatherproof-while-in-use (bubble) cover. If the outlet isn’t set up that way, the manual says to “contact a qualified electrician.”
• LED Spider Silhouette: plug it into “a wall outlet or a UL Listed Power Cord.”
• The SVI skeletons, Witch and Werewolf: the manuals say nothing about cords or GFCIs either way.

Read the safety page of your own manual before you run a cord. Our weatherproof decorations guide covers cords and connections for the props whose manuals allow them.

Batteries

The Pan Asian props run their figures and lanterns on AA or AAA cells. Their manuals say “Alkaline batteries are suggested for longer life,” “Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries,” and “Do not mix old and new batteries.” The hearse manual also says to “Clean the battery contacts and also those of the device prior to inserting” them.

When It Won’t Fire

The manuals’ troubleshooting tables start with power and cables. Work down this list in order:

1. A live outlet. The Skelly manual: “If item does not activate when turned on, ensure that the adapter is plugged into a live outlet.” Plug a lamp into it.
2. The threaded cable caps. Skelly cables join with a cap you screw on: line up the arrows on both ends “pointing at each other,” press together, then “Rotate the cable cap clockwise onto the threading of the corresponding cable until firmly in place.” The adapter cable has the same cap. The manual’s first tip for eyes that won’t light is to check that “cables are connected to their corresponding cable.” The cable pairs are color-coded.
3. The indicator light and the mode. On the App Skelly, “If there is power, a red indicator light will light up on the control box. If the red light indicator is set to ‘OFF’, please change it to ‘BLUETOOTH,’ ‘LIGHTS ONLY,’ or ‘TIMER-SENSOR.’” A new App Skelly may still be in demo mode (hold MODE for 7 seconds).
4. Anything covering the sensor. “Be sure nothing is blocking the sensor,” say the Witch and Werewolf manuals, and the Werewolf adds “Make sure the (Z) Pants are not covering the Sensor.” Spirit’s FAQ says the same about costumes and adds: check the sensor’s wires at the control box.
5. Costume in the moving parts. The Witch manual: “The elastic band of the (W) Hat needs to be tucked far under the chin of the (P) Head. Otherwise the mouth movement will be affected.” Both 2022 manuals also say to check that “nothing is blocking movement or caught in moving parts,” that the surface is “flat and level,” and that “the volume is not all the way down.”
6. Weak batteries. The hearse manual’s rule: “Replace batteries if movement slows, light becomes dim or sound becomes distorted or faint.” Its lantern checklist ends with “Ensure it is within the 6 hours ON Timer schedule.”
7. The try-me plug in the wrong jack, covered above.

A few model-specific fixes from the same tables:

• Pirate Ship wheel clicking: “Replace Pirate’s hands back on Ships Wheel,” then “Give the Ships Wheel a half-turn to set it back on its track.” The manual adds “(Item is not damaged).”
• Skelly arms: “Loud ‘clacking’ is normal as the arm moves.” Raise an arm by the upper arm; the manual warns “Do not apply pressure at the hand or forearm to adjust arm height, this may damage the parts,” and “Do not overtighten” the shoulder screw. If an arm won’t move, it says to call customer service.
• LED Spider Silhouette: “Check for Broken or Burned Out Fuse In Plug.”

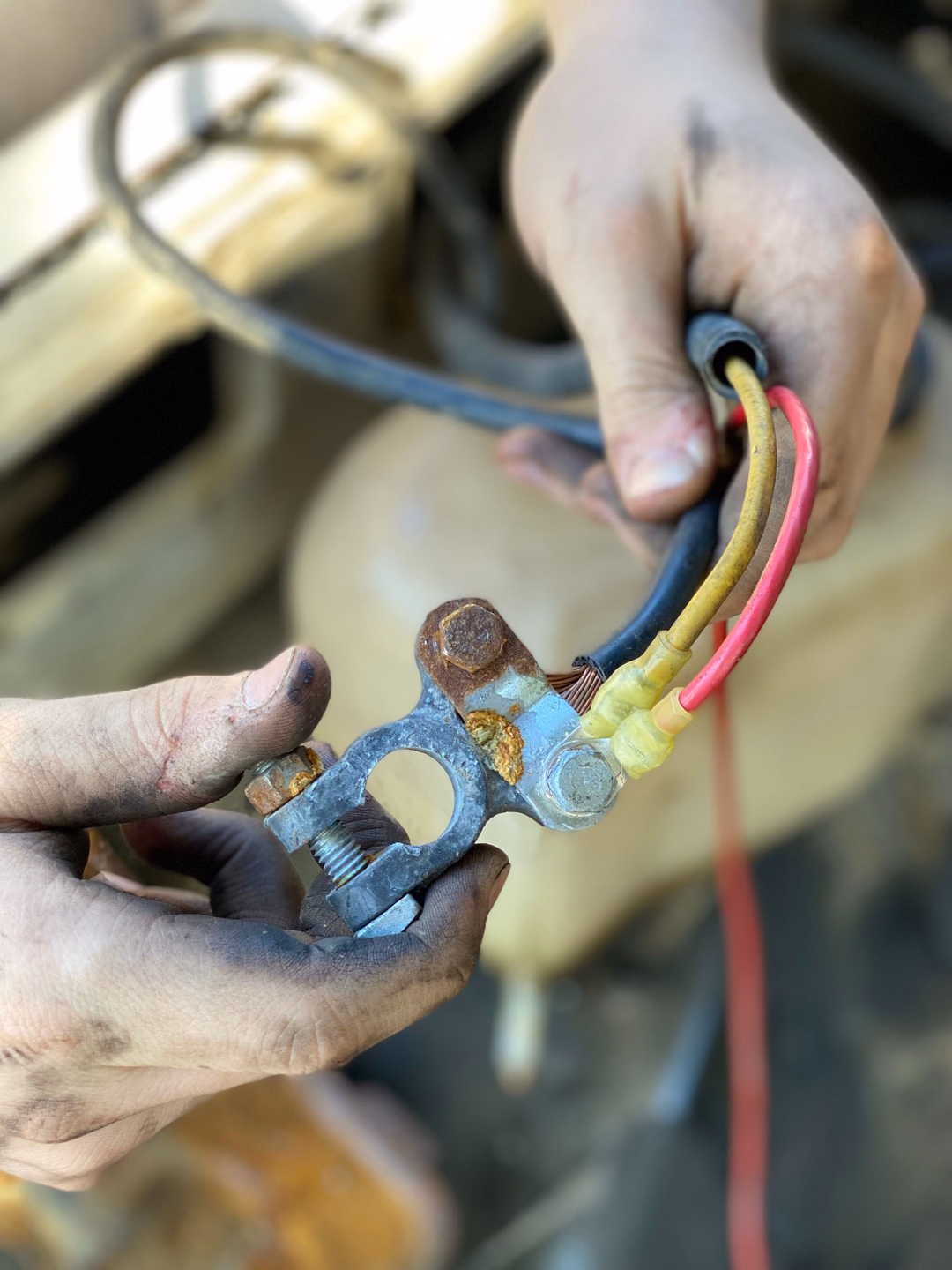

Battery Corrosion

The white crust in an alkaline battery box is not “battery acid.” Energizer’s alkaline handbook describes “a potassium hydroxide electrolyte.” Duracell’s FAQ cleanup recipe uses a mild acid: “one tablespoon of boric acid in one gallon of water or a mixture of equal amounts of diluted vinegar or lemon juice with water (50/50 ratio).”

Duracell’s steps, in order:

1. “Work in a well-ventilated area. Wear household gloves and glasses.”
2. “Using a toothbrush or cotton swab, remove battery leakage from the electrical contacts.”
3. “Make sure the electronic device is completely dry before trying a new battery.”

For contacts that are dull rather than crusted, Energizer says to rub them “with a clean pencil eraser or cloth.” Spirit’s FAQ goes harder: “Clean the terminals gently with sandpaper or a small wire brush.” Start with the eraser and move to the brush only if it doesn’t get the contacts clean.

Prevention is mostly about the off-season. Duracell says not to leave batteries in a device “if you suspect it will not be used for several months,” and the Pan Asian manuals say the same. Energizer names two causes of leaks a yard prop runs into: “extreme temperature cycling can cause a failure of the battery seal integrity,” and deep discharge, which it ties to “the increased chance of excessive internal gassing” below 0.8 volts per cell. Swap the cells when the hearse manual’s signs show up (movement slows, sound distorts) rather than running them flat.

Don’t seal a battery box airtight to keep rain out. Energizer’s handbook warns that in “tightly sealed or water proof battery compartments,” hydrogen gas from the cells “needs to be addressed as a potential safety issue.” That is a design warning from the battery maker, not a report of a prop failing that way, but tape and silicone over the box is that kind of setup.

Parts, Warranties and Who to Call

There is no single Home Depot animatronic warranty:

Manual	What it says
Deadwood Skeleton	“intended for seasonal use and does not have a warranty.” Parts help for defects or missing parts within 90 days, with a receipt
LED Spider Silhouette	“90 DAY LIMITED WARRANTY,” returned to the store with receipts
Classic and App Skelly	No warranty section. Email or call within 90 days, receipt ready, “Before returning to the store”

SVI’s parts policy covers all its props. Free replacement parts go to requests made within 90 days of the original sale date, with proof of the date, for “Manufacturing defects or factory errors,” “Defective components that do not function as intended,” and “Parts missing from the original packaging.” It excludes:

• “Discounted, marked-down, or store display products.” A clearance giant from November gets no free parts.
• “Purchases from non-authorized or third-party retailers.” A resale listing gets none either.
• “Repairs or alterations performed by the customer.”
• “Accidental damage resulting from assembly, disassembly, weather exposure, or transit.”

SVI also says it cannot replace “Oversized parts (e.g., bases and torsos),” accessories such as step pads, or “Most parts for products manufactured prior to 2025.” After 90 days, parts are for sale on sviservice.com, and “Replacement parts are final sale” for 2026 orders onward. The same policy won’t replace “Small products (e.g. poseable skeletons, jack-o-lanterns, tombstones),” so a broken joint on a posable skeleton is yours to fix. For a whole-box refund or exchange, SVI sends you to the store you bought from.

Every manual we could check, except the Spider Silhouette’s, carries this line: “Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” That is the standard FCC radio-interference notice, not a warranty clause.

Where to call, per the manuals and SVI’s site:

• SVI (Skelly, Deadwood, Witch, Werewolf): 855-428-3921 or [email protected]. The Witch manual lists SVI’s hours as 8:30am to 5:30pm Pacific. The Witch and Werewolf manuals also give “HOME DEPOT customer service at 1-877-527-0313.”
• Home Accents Holiday customer service (Skelly, hearse, pirate ship): 1-855-434-6543.
• Ferry of the Dead: 1-877-527-0313, 8 a.m. to 5 p.m. Eastern, Monday to Friday.
• Spirit’s Zombie Tech Squad: 1-866-580-5819. Spirit says the team has “over 30 years of experience building, repairing, and troubleshooting props.”

When the Motor Is Actually Dead

We found no manufacturer, retailer or university source that walks through replacing the motor in a store animatronic, and we won’t invent the steps.

• Pan Asian (hearse, pirate ship): “Display should be serviced by a qualified service person only. Do not attempt to service this unit beyond what is described in the operating instructions.”
• SVI: “Repairs or alterations performed by the customer” end free-parts eligibility.
• Spirit is looser. Its FAQ says that if you find broken wires between the control box and the body, “they can easily be spliced together.” That advice is Spirit’s, for Spirit props. Nothing in the Home Depot manuals says the same.

Before calling a motor dead, rule out everything in the checklist above. The classic 12-foot Skelly has no drive motor to fail: its manual describes LCD eyes, lights and arms you pose by hand. SVI sells its parts as assemblies rather than motors: the classic Skelly’s parts page (sold there as Skelly 2.0) lists a “PELVIS AND CONTROL BOX” and a “SELECTABLE EYE KIT.” Inside 90 days with a receipt, a failed part should be SVI’s problem. After that, call the maker before you take a screwdriver to it.

Weather

• No water ratings. None of the nine manuals gives an IP rating or mentions rain. The Pan Asian props say “Do not use near water,” and the hearse, pirate ship and Ferry are labeled for indoor and outdoor use. The SVI skeleton manuals don’t say either way.
• Cold. The classic Skelly’s pictograms warn “DAMAGE COULD OCCUR IN TEMPERATURES LESS THAN 0 DEGREES FAHRENHEIT.” Energizer’s handbook gives alkaline cells an operating range of -18°C to 55°C, which is about 0°F to 131°F.
• Wind. Every SVI manual says “Lay product down before a storm or strong winds,” and none gives a wind speed. Anchoring a giant is in our store animatronics guide, and posing and staking smaller skeletons is in our guide to posing life-size skeletons.
• Drying. The Deadwood manual says to let the skeleton “fully dry before putting back in the box,” and the Spider manual says to “allow the unit to dry before storing.” SVI excludes damage from “weather exposure” from free parts, so a prop boxed wet and moldy next September is on you.

Storage space and boxes for the giants are covered in the store guide’s storage section.

Frequently Asked Questions

Can I make my Skelly move all the time? Not with any setting in the manuals we read. Movement comes one cycle per trigger. For regular motion, set it to step pad or try-me mode and put the button where someone will press it, or put the prop on an outlet timer so it is at least in sensor mode during your hours.

Why does my classic 12-foot Skelly ignore people walking past? Its IR sensor only fires accessories on the red cable. The Skelly’s own 18-second cycle runs from the step pad.

Will any step pad work with my Home Depot prop? No manual we read states the plug size, and SVI’s own try-me button lists no compatible props. Check with the maker at 855-428-3921 or the seller before you order, and on the App Skelly, keep the try-me button out of the speaker jack.

Can I use an extension cord? It depends on the prop. The Dead Water Pirate Ship manual forbids one; the LED Spider Silhouette allows a UL Listed cord; the SVI skeleton manuals say nothing. Follow your own manual.

Does buying on clearance affect repairs? Yes, for SVI props. Its parts policy excludes “Discounted, marked-down, or store display products” from free replacement parts.
